Battery-powered crawler transporters
Electric Crawler Transporters by Maschinenbau Riebsamen
Battery-Powered Tracked Platforms for Construction, Glass Handling and Industrial Transport
The electric crawler transporters by Maschinenbau Riebsamen are engineered and manufactured in Germany, representing precision, durability and advanced engineering. Designed for demanding construction and industrial environments, these battery-powered tracked platforms provide a highly efficient solution for material transport on challenging terrain.
Thanks to their robust tracked undercarriage, the electric tracked platforms ensure safe and stable operation on uneven ground, gravel, slopes and sensitive flooring. Whether transporting Euro pallets, steel beams, timber beams, windows or heavy glass panels, the electric crawler carrier moves loads reliably, smoothly and with maximum control.
Modular Electric Tracked Platform for Maximum Versatility
A key advantage of the Maschinenbau Riebsamen electric crawler platform is its modular design system. The machine can be quickly adapted to different applications using interchangeable attachments, transforming it from a tracked material transporter into a versatile lifting and handling solution.
The electric crawler transporters are available in four load capacity classes from 750 kg up to 1,500 kg, offering the right configuration for construction companies, glazing specialists and industrial users.
Interchangeable crane modules
With the crane attachment, the tracked platform becomes a fully functional crane. It can lift loads of up to 990 kg. The large reach of 4.5 meters allows for versatile work in confined spaces.
Thanks to its wide lifting range, the attachment is also ideal for transporting and positioning beams, stone, or concrete elements. Its modular design allows for assembly and disassembly on the tracked platform within 5 minutes.
Emission-Free Electric Drive System for Indoor and Outdoor Use
Emission-Free Electric Drive System for Indoor and Outdoor Use
The powerful battery-powered electric drive enables zero-emission and low-noise operation, making the machines ideal for:
- Indoor construction projects
- Industrial facilities and warehouses
- Urban construction sites
- Noise-sensitive environments
- Glass installation projects
With an operating time of up to 8–10 hours, the electric construction transporter is designed for a full working day. An optional additional battery further increases operating range and productivity.
Built-In Accessories
- Custom paint finish
- Integrated winch
- Additional LED work lights
- Additional battery for extended operating timeoffering the right configuration for construction companies, glazing
specialists and industrial users.
Technical data tracked platform
| Width | 81 cm |
| Lenght | 121 cm |
| Height | 43 cm |
| Climbing ability | 45° |
| Radio control | Acron radio control |
| Color | RAL 3002 | Custom paint finish of your choice |
| Accessories permanently installed on the device | Winch | extra headlights | additional battery for a range of 12-14 hours |
Model variants tracked platform
| RP 750 | Payload 750 kg | Qwn weight 280 kg |
| RP 1000 | Payload 1000 kg | Qwn weight 310 kg |
| RP 1200 | Payload 1200 kg | Qwn weight 310 kg |
| RP 1500 | Payload 1500 kg | Qwn weight 330 kg |
Modular Interchangeable Attachments
Technical data for the KM 0.5 swap body
| Weight of crane module | ca. 300 kg |
| Maximum charging capacity | 990 kg |
| Wide supports retracted | 810 mm |
| Wide supports extended | 1700 mm |
| Extended support length | 1830 mm |
Technical data for the KM 1.1 swap body
| Weight of crane module | ca. 500 kg |
| Maximum charging capacity | 990 kg |
| Wide supports retracted | 810 mm |
| Wide supports extended | 2800 mm |
| Extended support length | 1830 mm |
Modular Interchangeable Attachments

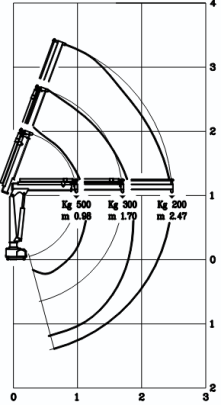

Crane Module KM 0.5
- 500 kg lifting capacity at 0.98 m
- 200 kg lifting capacity at 2.47 m
- Hydraulically controlled
- Approx. 250 kg dead weight
Crane Module KM 1.1
- 990 kg lifting capacity at 1.1 m
- 200 kg lifting capacity at 4.5 m
- Hydraulically controlled
- Approx. 550 kg dead weight
Double-Sided Glass Rack Module
- Includes 4 tension straps
- 800 kg load capacity
- Approx. 43 kg dead weight
Custom Engineered Attachments
- Special application solutions available upon request
Trade fair dates
We are in:
Fensterbau Frontale
in Nuremberg
from the 24. - 27. March 2026
Hall 4 / 4-458
Our quality standard:
Jobs and training at Riebsamen
If you are ready for a change, then join us in our family-owned company.
We look forward to your application!
FAQ
What is the load capacity of the tracked platform?
The models transport loads from 750 kg to 1500 kg.
How long does the battery last?
The operating time is up to 8–10 hours.
Can the tracked platform be used indoors?
Yes, thanks to the electric drive, the device operates emission-free and quietly.
